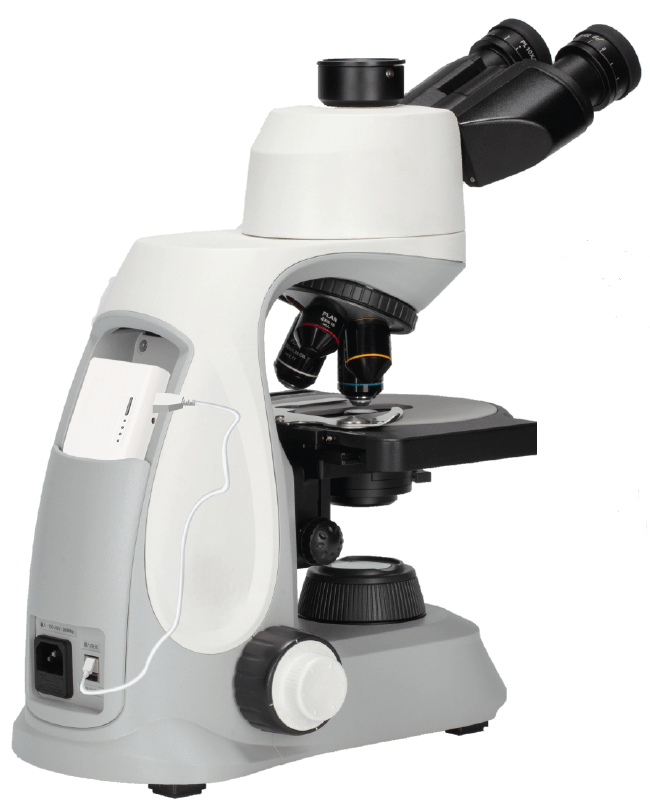

Universal corrected plan optical system
Single mold Aluminum stand with hand rests for enhanced comfort and stability
High Transmission Slider Binocular or Trinocular head, 30° inclined, 360° rotatable, Interpupillary
distance 52 – 75mm
Wide field 10x/18mm eye-pieces with anti-reflection & anti-fungal coatings.
Optical System | Universal corrected plan optical system |
Stand | Single mold Aluminum stand with hand rests for enhanced comfort and stability |
Viewing Body | High Transmission Slider Binocular or Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 52 – 75mm |
Eyepieces | Wide field 10x/18mm eye-pieces with anti-reflection & anti-fungal coatings. |
Nosepiece | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip. |
Objectives | DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil). Antifungal and antireflection coated. |
Mechanical stage | Double plate stage size 190 x 140mm, X/Y travel range 75mm x 50mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip. |
Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides. |
Focusing | Coaxial coarse and fine focusing on ball drive system for smooth operation. |
Illumination | Halogen 6V-20W or 3W LED illumination with variable illumination control. Up to 2,000 hours of Halogen (20W) lamp life and 100,000 hours of LED life. |
Electronics | Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer |
Accessories | Pointers & Micrometer Reticules, Phase, Polarizing, Fluorescence and Dark Field Kits, Quintuple Nosepiece, Auxiliary Objectives and Eyepieces, Digital Cameras and Adapters, Infinity Plan Optics, Monocular 30 Degree Head (All optional) |
Package Contents | Power Cable (5ft), Immersion Oil, Cord Hanger Kit, Kohler Kit, Spare bulb (20w version only), Nylon Dust Cover & Cleaning Cloth, Styrofoam Casing. |
Certifications | ISO 9001:2015, ISO 13485:2016, IEC 61010-1,IEC 60601-1:2005, GEM |
Warranty | 2 years |
